Quick Details
- Wire Diameter(mm): 1.6-4mm
- Condition: New
- Machine Type: Gabion Mesh Making Machine
- Video outgoing-inspection: Provided
- Warranty of core cpmponents: 1 Year
- Core Components: PLC,Engine,Bearing,Gear,Pump
- Production Capacity: 200 Sets/Year
- Place of origin: Jiangsu,China
- Brand Name: Jinlida
- Model Number: LNWL43-100-4
- Weight: 17000kg
- Power: 22kw
- Key Selling Points: Long Service Life
- Warranty: 1 Year
- After-sales Service Provided: Free spare parts,Online support,Video technical support,Field maintance and repair service
- After Warranty Service: Video technical support,Online support
- Applicable Industries: Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Retail,Construction works.
- Specification : 6300*1400*2400mm
- Mesh Size: 100*120mm
- Spindle Speed: 25r/min
- Theoretic Output: 225m/h
- Material: iron
- Twist: 3 cross
| Type: | LNWL43-100-4 | Twist: | 3 cross |
| Material: | iron | Mesh Size: | 100x120mm |
| Theoretic Output: | 225m/h | Specificationn: | 6400x1400x2400mm |
| Spindle Speed: | 25r/min | Warranty: | 1 Year |
| Power: | 22kw | Color: | customized |
Supply Ability
Supply Ability:200 Set/Sets per Year
Packaging & Delivery
Packaging Details:Nude Packing and will be fixed in the 40 container by iron wire.
Port:Shanghai Port
Lead Time:
| Quantity(Sets) | 1-1 | >1 |
| Est.Time(days) | 50 | To be negotiated |

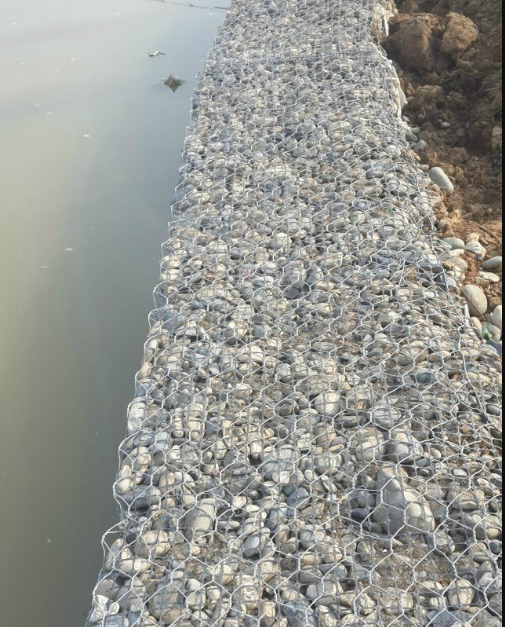

Gabion Application
Gabion Machine widely used in oil,construction,raising,chemical industry warming piping and etc.it is alsoused in fence,apartment and greening.The hexagonal wire netting can be used in protect sea wall,hillside,road,bridge abd civil engineering.it is one of the best against filloding material.
The series gabion mesh machines have been designed to make gabion mesh various widths and mesh sizes.The possible coatings are galvanized and zinc.For high corrosion resistance,zinc and PVC coated wire is available.
Detail Specification for all style of LNWL-2 Gabion Machine
| Style | Mesh size | Width | Wire diamater | Spindle Speed | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) |
| LNWL23-60-4 | 60X80 | 2300 | 1.6-3 | 25 | 11 | 165 |
| LNWL23-80-4 | 80X100 | 1.6-3 | 195 |
| LNWL23-100-4 | 100X120 | 1.6-3.2 | 225 |
| LNWL23-120-4 | 120X150 | 1.6-3.5 | 20 | 255 |
| LNWL33-60-4 | 60X80 | 3300 | 1.6-2.8 | 25 | 15 | 165 |
| LNWL33-80-4 | 80X100 | 1.6-3 | 195 |
| LNWL33-100-4 | 100X120 | 1.6-3.2 | 225 |
| LNWL33-120-4 | 120X150 | 1.6-3.5 | 20 | 255 |
| LNWL43-60-4 | 60X80 | 4300 | 1.6-2.8 | 25 | 22 | 165 |
| LNWL43-80-4 | 80X100 | 1.6-3 | 195 |
| LNWL43-100-4 | 100X120 | 225 |
| LNWL43-120-4 | 120X150 | 1.6-3.2 | 20 | 255 |
Description
1.The reed pipes adopt seemless steel tube to increase inside diameter,it can put more spring wire and also can reduce the weight of machine,making machine work faster.
2.The wire mesh machine uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.
3.The machine can continuously work and run smoothly.It has low noise , when something wrong it will give an alarm and automatically stop.
